Project: Bridge Design Project

Assignment: Topographic Survey and Mapping for Bridge Design Project

Location:  Palpa and Chitwan  District, Nepal

Client: NSEC-ITECO-NSEGS

Duration:  April 2018 to June 2018

Project Description: This project is based on the complete design of 6 bridges. One of the six bridges is in Muglin above Trishuli river while other 5 are along the feeder road in Palpa district.

Scope of Services:

1. Site visit along with the design team and client to get general layout of the site;
2. Desk study and discussion with the client about the depth of survey work required;
3. Arrangement of all the required survey equipment, manpower and transportation facilities;

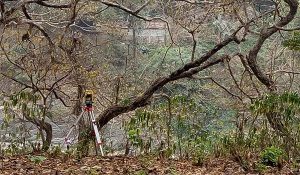

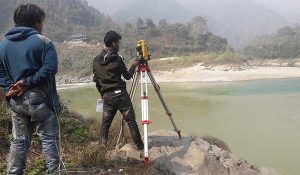

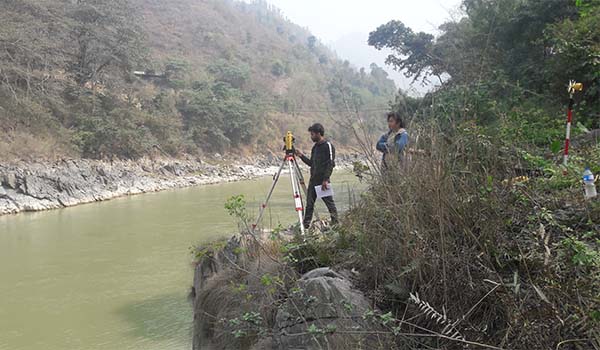

4. Detail topographic survey and Mapping of the six proposed bridge sites in the scale of 1:1000; and
5. Cross section and Longitudinal Survey at every 100m interval up to 500m downstream and 1km upstream of the proposed axis.
6. Equipment Used:
    • Total Station-2 sets
    • DGPS-3 Set
    • Hand Held GPS-1
